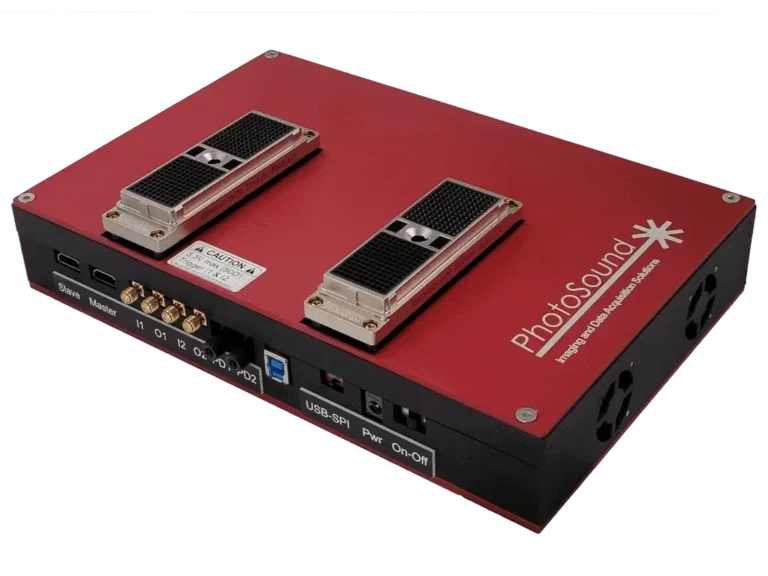

Legion ADC - Base plus one Preamp of 128 channels, with QLC connector
Legion ADC - Base plus one Preamp of 128 channels, with QLC connector
The LEGION ADC modules were designed for massive parallel data acquisition utilized in photoacoustic, laser-induced ultrasound, and X-ray acoustic real-time imaging applications. The LEGION ADC module offers fully parallel operation for simultaneous data acquisition from all channels without multiplexing in an ultra-compact enclosure connected via USB 3.0. Each unit supports 128- or 256-element detectors. Up to four ADC units can be operated in parallel to enable 1024 data acquisition channels. If more channels are desired, up to 32 units can be operated in parallel with the use of a synchronization hub (LEGION Hub) leading to an unprecedented 8192 channels. Independent programmable gain control is available for each channel, and analog signals can also be further amplified by a fixed 34 or 40 dB using optional, integrated preamplifiers. The LEGION ADC HD improves the analog bandwidth and sampling of the LEGION ADC and is currently available with 128 data acquisition channels.
Features
- Compact, durable and light enclosures with integrated cooling fans
- Streaming ADCs for continuous data acquisition with no buffering or multiplexing
- Each analog channel has an integrated amplifier with digitally controlled gain
- Acoustoelectrics
- Trigger output can be generated at defined rate or repetition of external trigger input with programmed delay
- Connect up to four units in parallel and acquire more data at fast data acquisition rates
- Sync external hardware with data acquisition using electronic or optical IN/OUT ports
- Access to raw RF data
Specifications ADC
- 128/256-channels
- 9 to 48 dB programmable gain (49-88 dB w/ optional preamplifiers)
- 12.5 kHz to 25 MHz analog bandwidth (40 kHz to 25 MHz w/ optional preamplifiers)
- 12-bit resolution
- 40 MSPS sampling rate
- 50 Ω input impedance (2.2 MΩ w/ optional preamplifiers)
- Up to 200 Hz (256-ch) or 400 Hz (128-ch) trigger/frame rate
- Up to 4096 points/frame/channel
- Choice of input connectors for 128- or 256-probes or arrays
Specifications ADC - HD
- 128 channels
- 6 to 54 dB programmable gain (42-90 dB w/ optional preamplifiers)
- 30 kHz to 50 MHz analog bandwidth at -6 dB (35 kHz to 61 MHz with optional preamplifiers)
- 12-bit resolution
- 80 MSPS sampling rate
- 50 Ω input impedance (2.2 MΩ w/ optional preamplifiers)
- Up to 200 Hz trigger/frame rate
- Up to 8192 points/frame/channel
- Choice of input connectors for 128-channel probes or arrays
Applications
- Photoacoustics (Optoacoustics)
- X-ray Induced Acoustics
- Thermoacoustics
- Acoustoelectrics
- 3D Tomography
- Photoacoustic Microscopy (PAM)
- 2D Imaging
- Multi-Sensor Monitoring
- Non-Destructive Testing
- Transducer Manufacturing
- Low Voltage Ultrasonics
