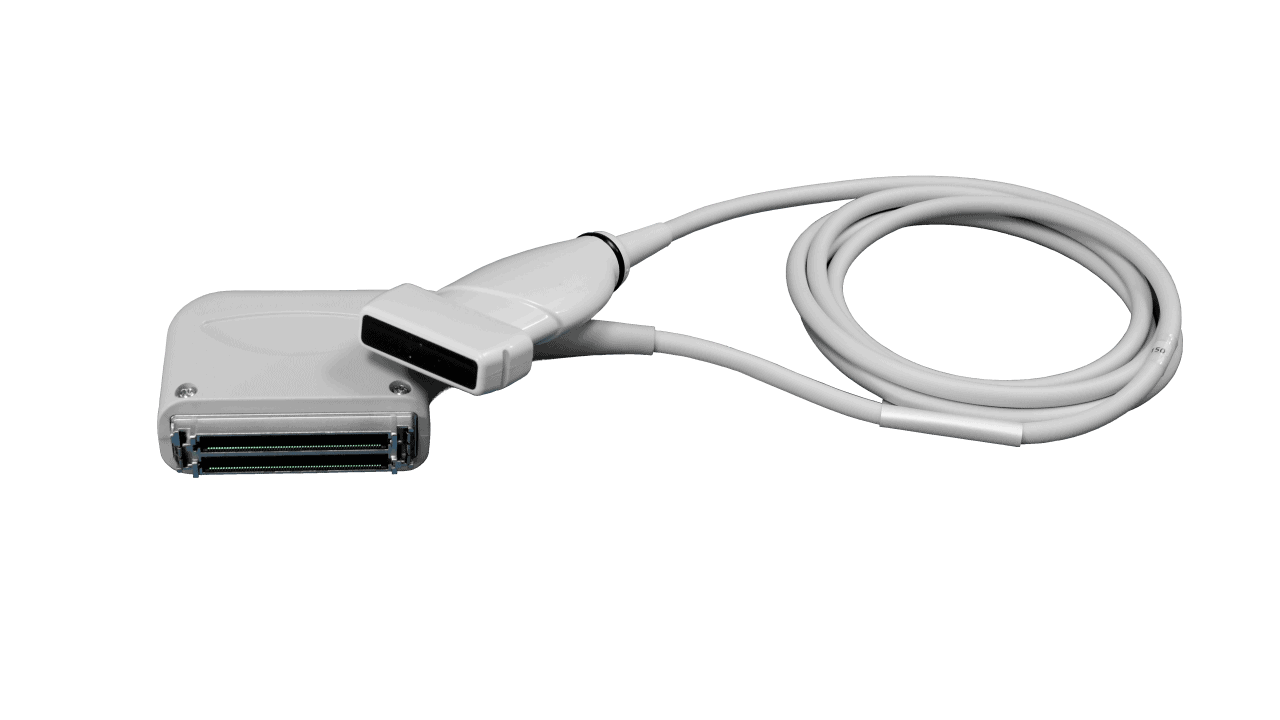

Linear Probe

The Linear Probe uses high-frequency ultrasound to create high-resolution images of structures near the surface of the body. This 128-element probe is ideal for vascular access and small part imaging, and is equipped with a frequency range of 5–12 MHz and a field of view of 40 mm.

Specifications

• 128 Elements
• Frequency range: 5.0 – 12.0 MHz
• Field of View: 40 mm
• Element Dimension: 4 mm (width)
• Length of Array: 38.4 mm
• Pitch Between Elements: 0.3 mm
• Elevation Focus: 20 mm

Applications

• Vascular
• Small Parts
• Veterinary
• Pediatrics
