Trinocular Stereo Zoom Microscope Package

Regular price $0.00

An Accu-Scope microscope setup designed for dissection applications:

* Viewing Head: Trinocular, 50/50 light split, 0.8x to 5.0x zoom range, inclined at 45º, 115mm W.D., interpupillary distance adj.52-75mm, glass lens shield

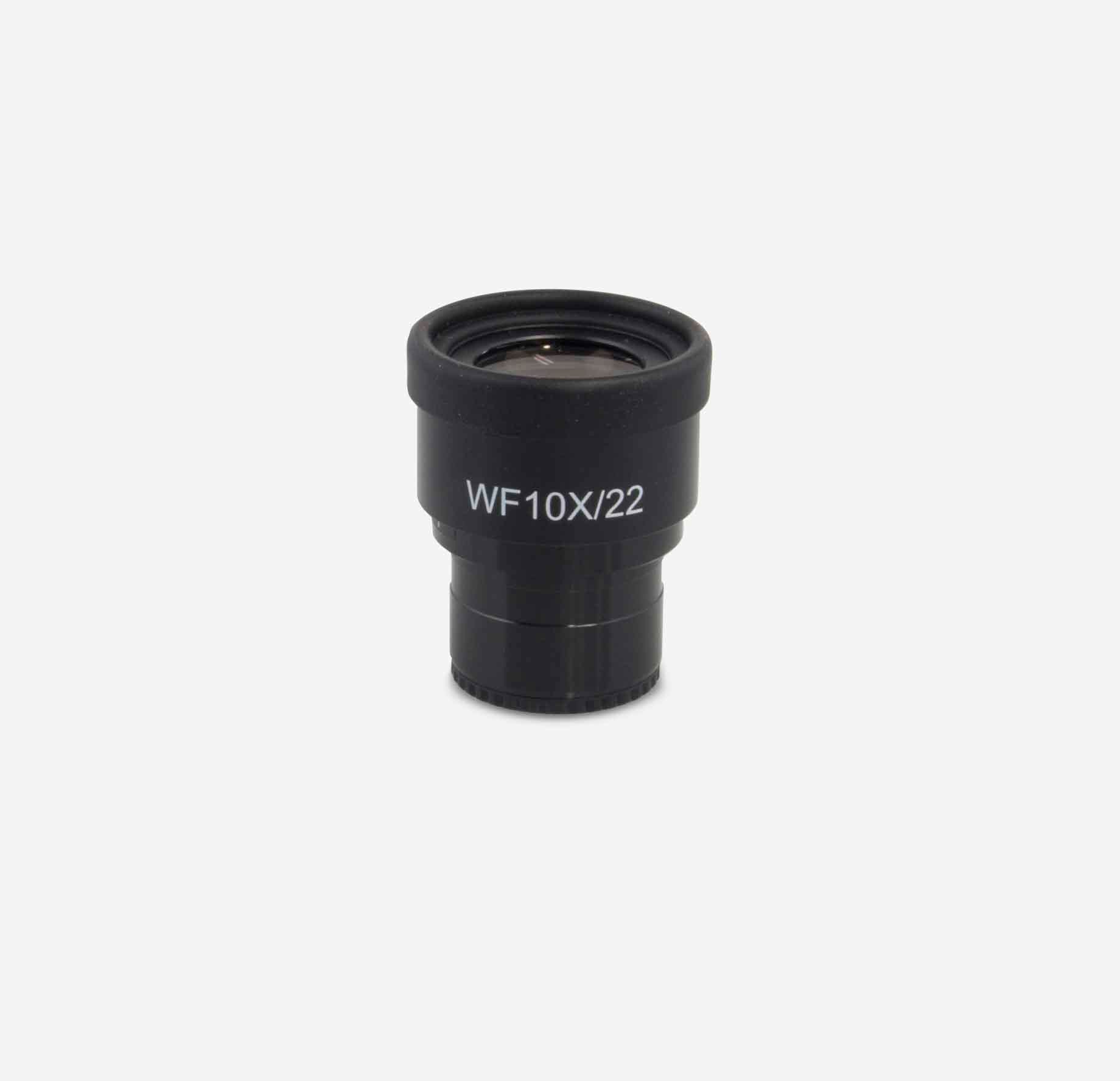

* Eyepiece: WF10x focusing with roll-down eye guard, 22mm field of view. Eyepiece accepts a 26.5 mm reticle.
Auxiliary Objectives: (LED and Plain Focusing stand configurations require riser adapter)

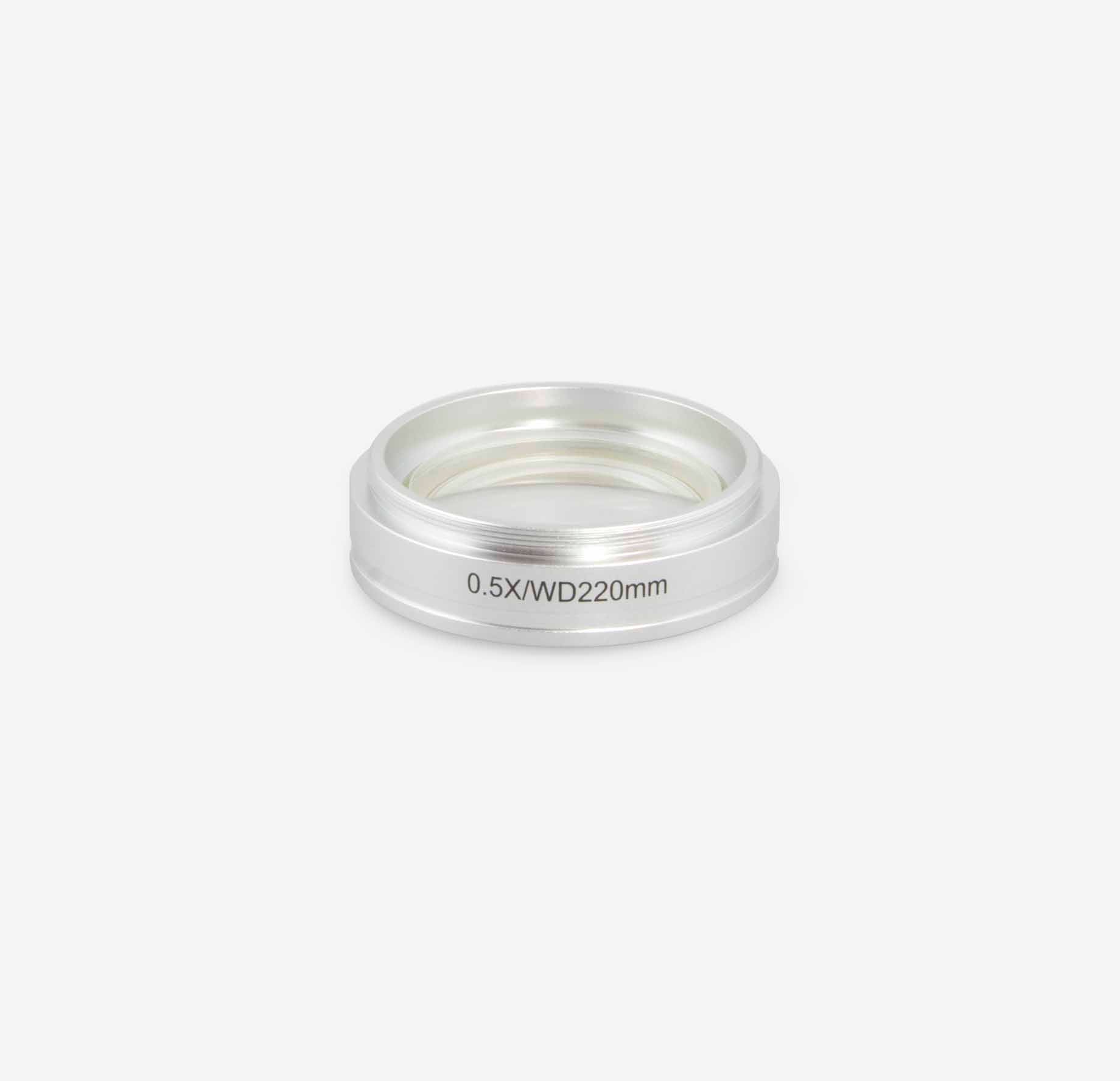

                   0.5x working distance = 211mm

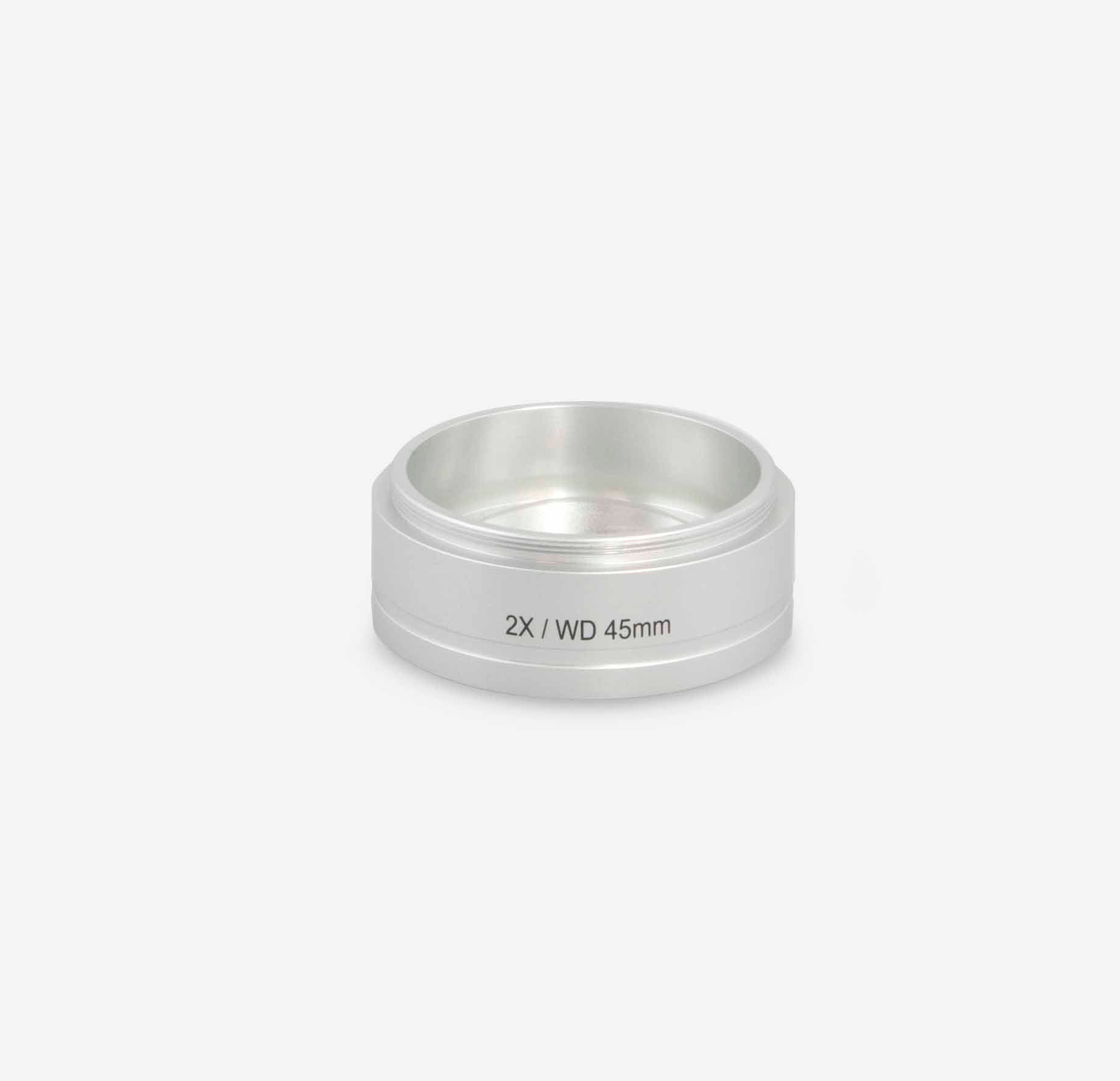

                   2.0x working distance = 43.5mm

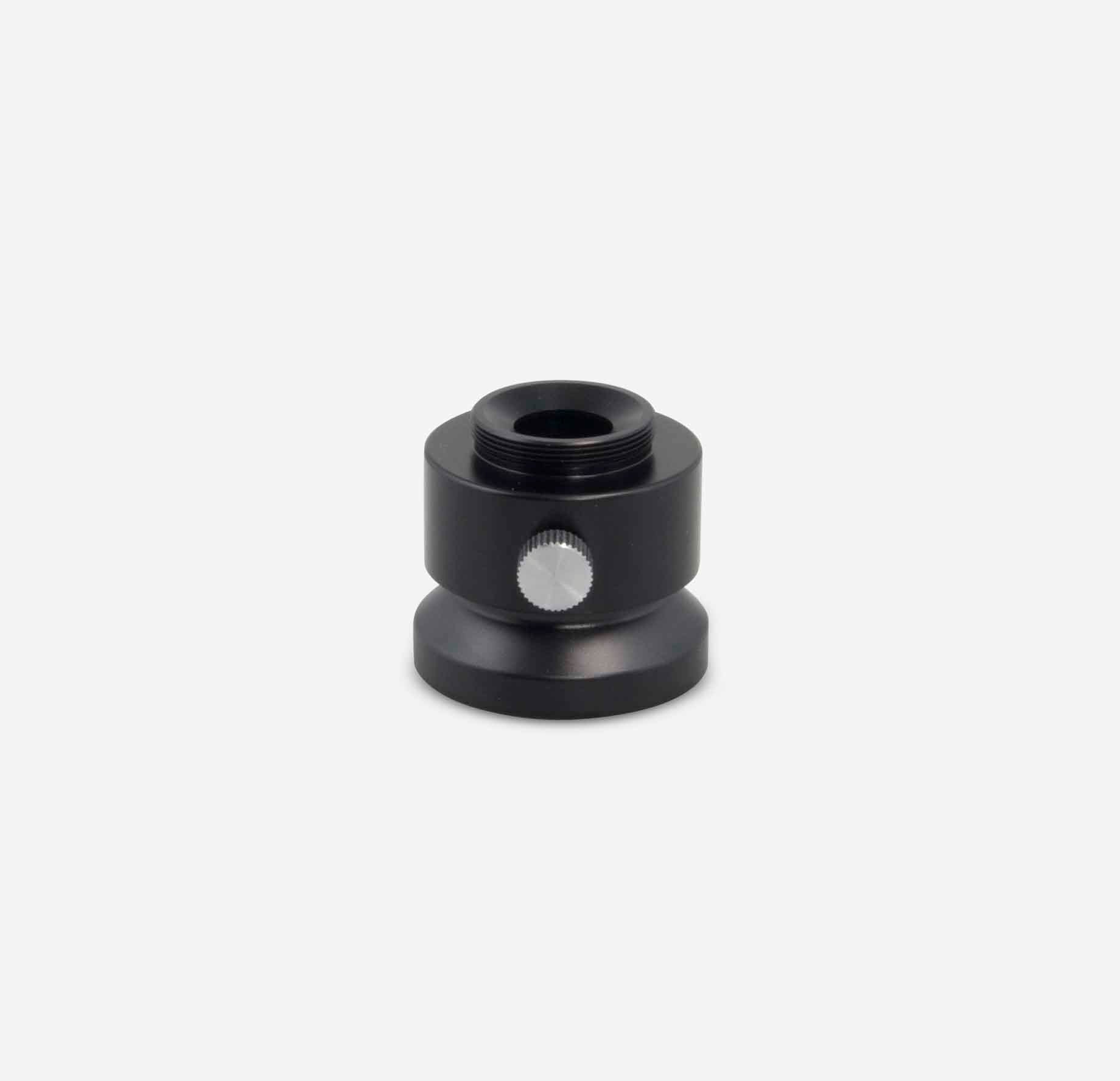

             * Camera & Video Adapter: 0.5x c-mount adapter

             *Stands & Focus Mounts - No Illumination

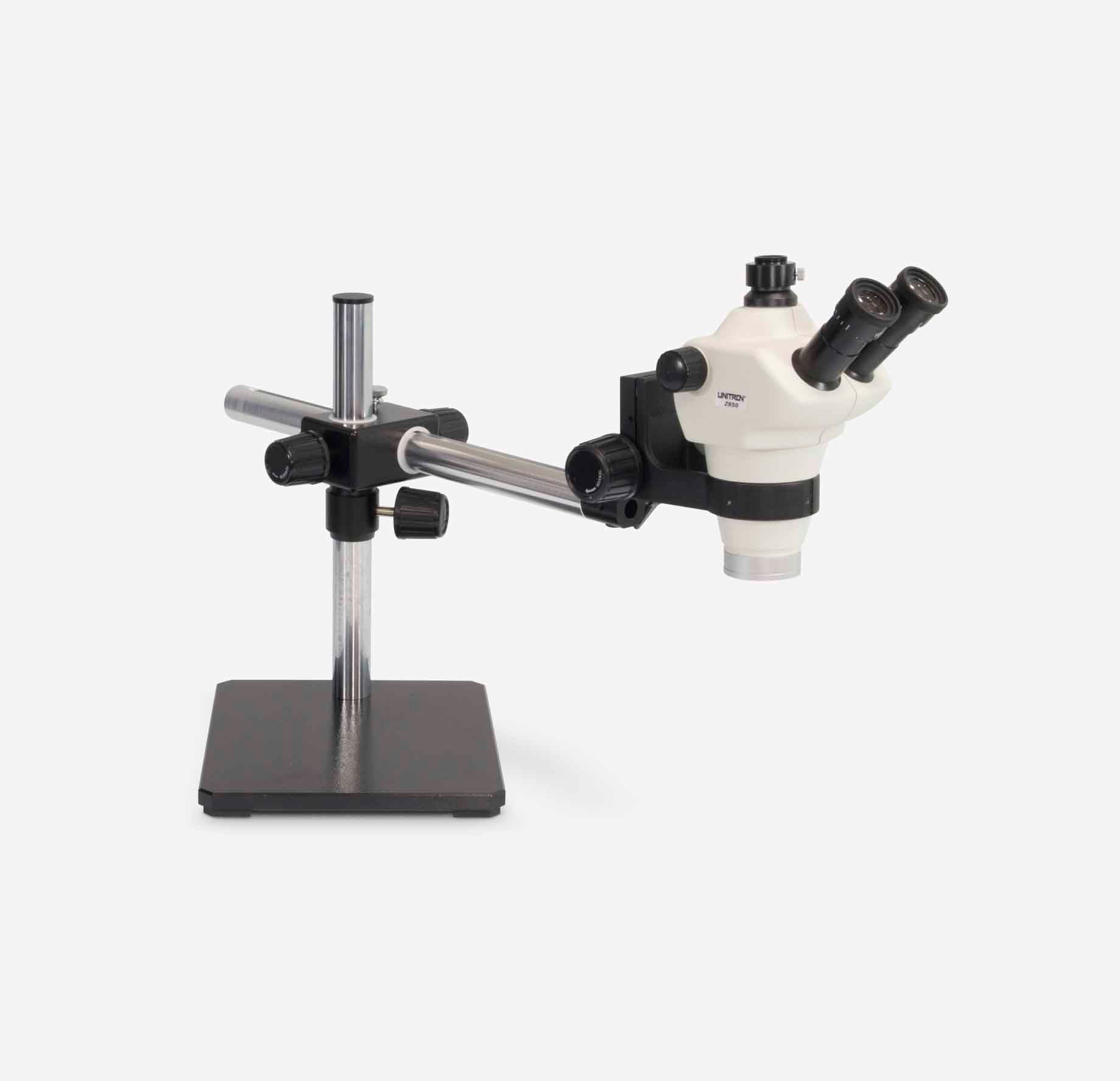

                  Universal boom stand with Delrin inserts in focus block for extra smooth                        movements, horizontal arm with bonder port
                  Bonder arm (E-Arm) with pod holder & mounting pin (Leica Style)

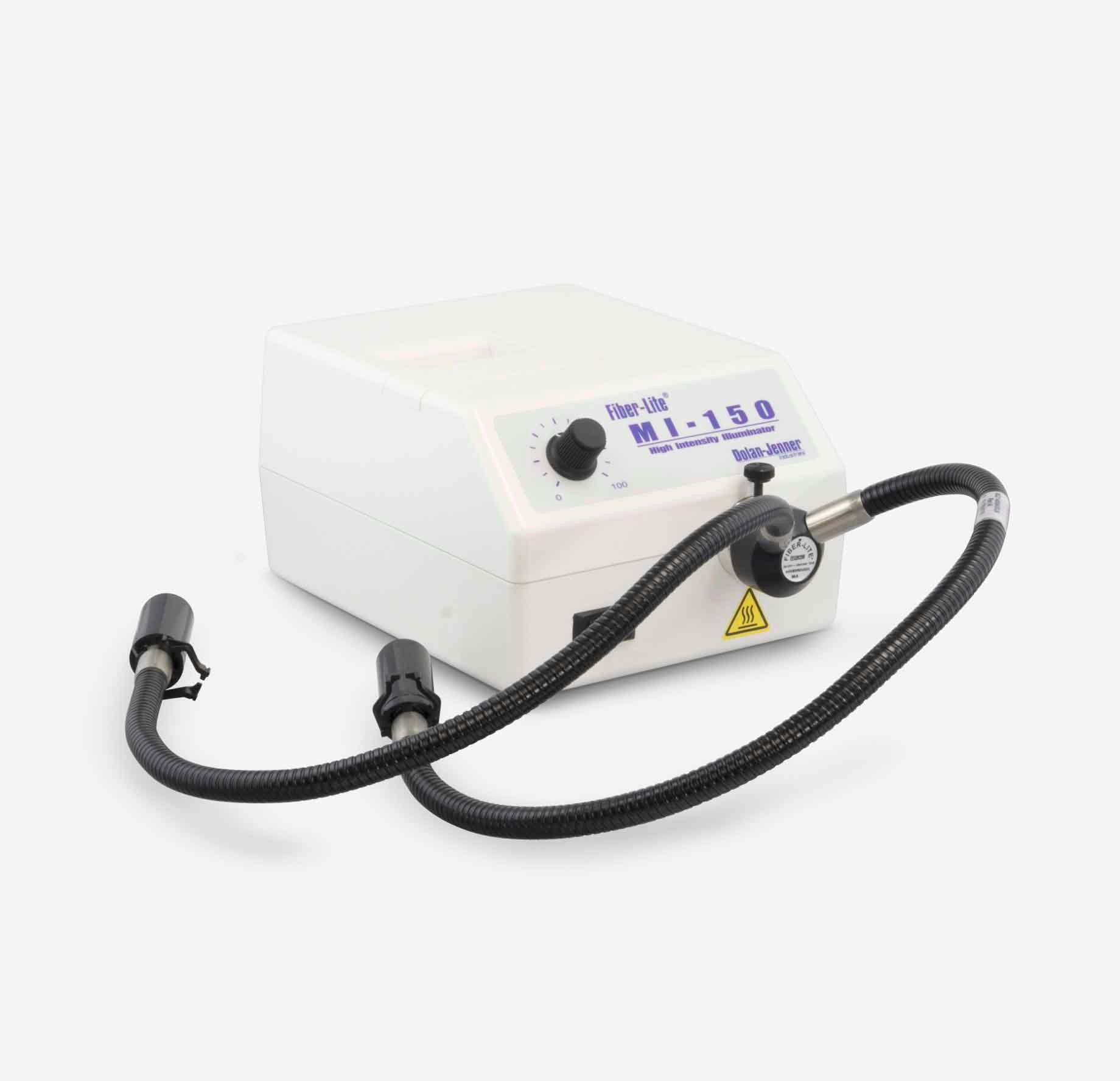

              *Dolan Jenner Illuminators: Mi-LED fiber optic illuminator, dual gooseneck                      with focusing lens.
